TorqFlex Motor
1 / 5
| PMDC MOTOR Technical Data | ||||||||
|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Eccentric size | Voltage (V) | Rated | Stall | ||||
| Operating Range | Nominal | Start Voltage | Speed | Current | Current | |||
| RPM | mA | mA | ||||||
| SL-DN20 | 08250 | R5.8*4.8 | 3.0~5.0 | 4VDC | 1.2VDC | 7600 | 110 | 380 |
| 08200 | R5.8*3.6 | 3.0~5.0 | 3.7VDC | 0.8VDC | 8500 | 130 | 480 | |
| 12110 | R5.8*6.0 | 1.5~3.0 | 2.4VDC | 0.8VDC | 9100 | 330 | 1100 | |
| 10145 | R5.8*2.4 | 1.5~4.0 | 3VDC | 0.6VDC | 10600 | 160 | 700 | |

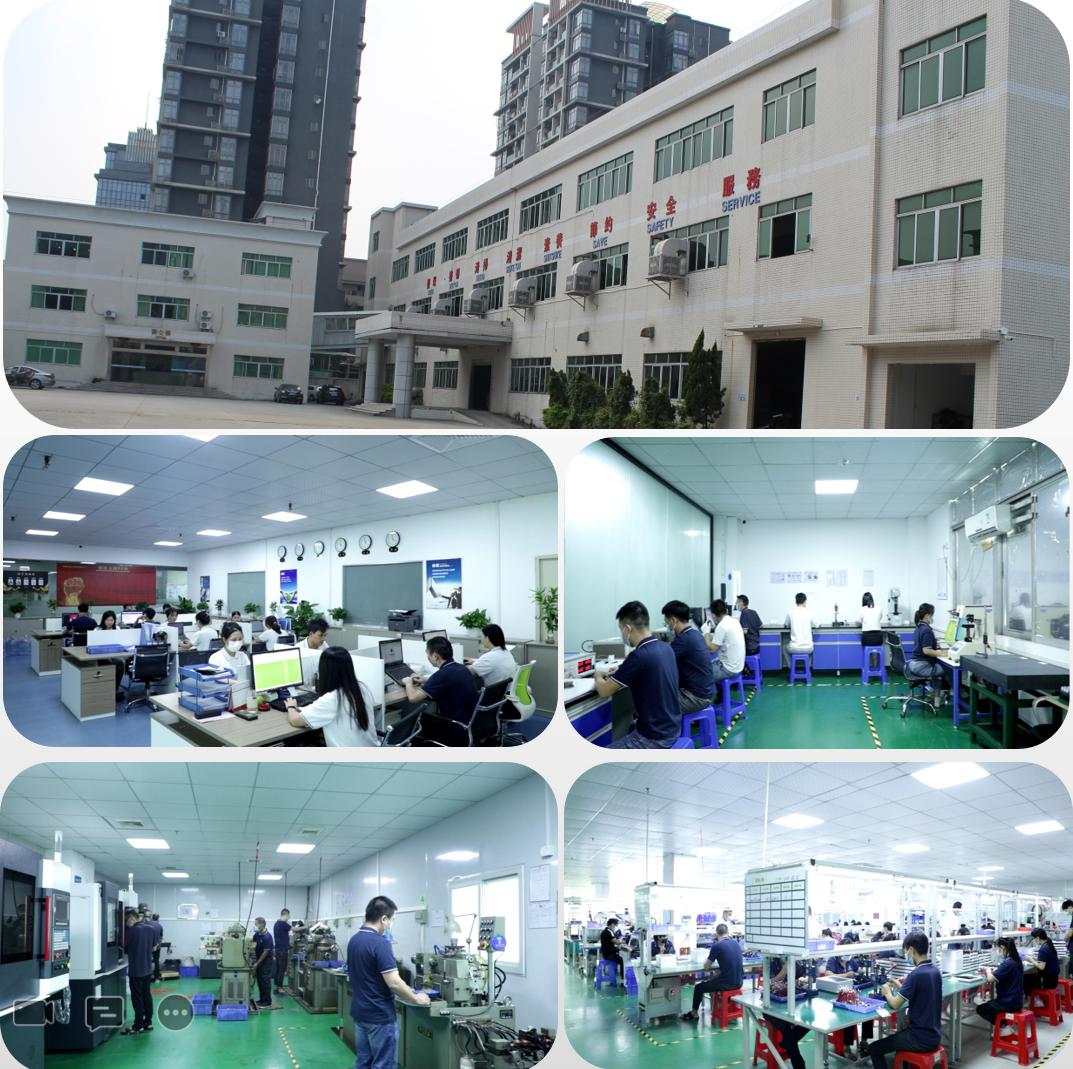

We are a factory specializing in producing motors for more than 14 years. With three factories, a professional R&D team, mature management, and an experienced engineering and sales team, we ensure a pleasant purchasing experience.

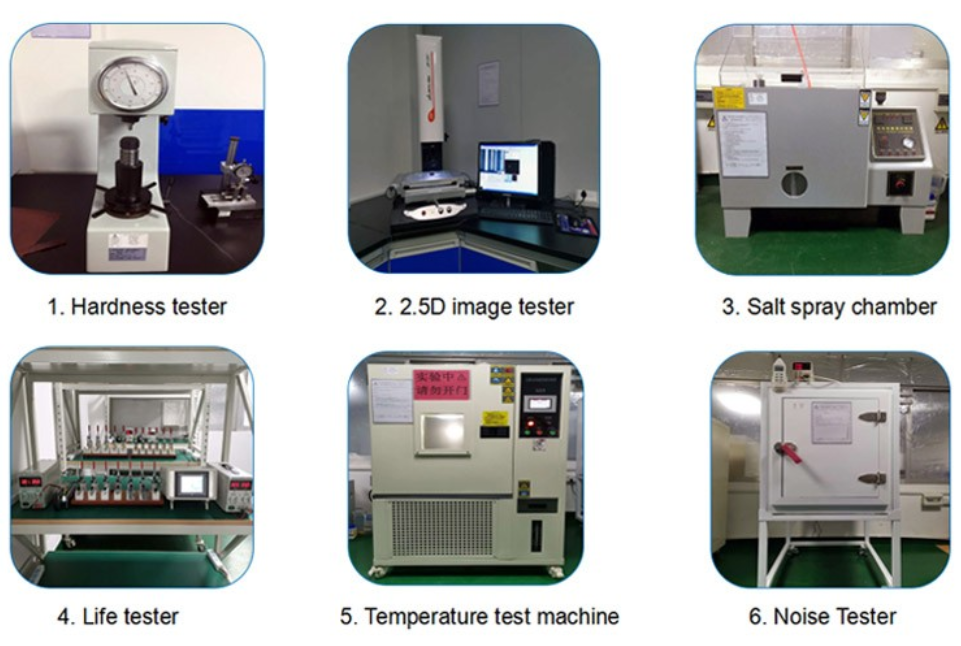

In order to confirm quality, every step from raw material receipt to final shipment is carefully checked. Quality is the very foundation of our development.
