Product Description

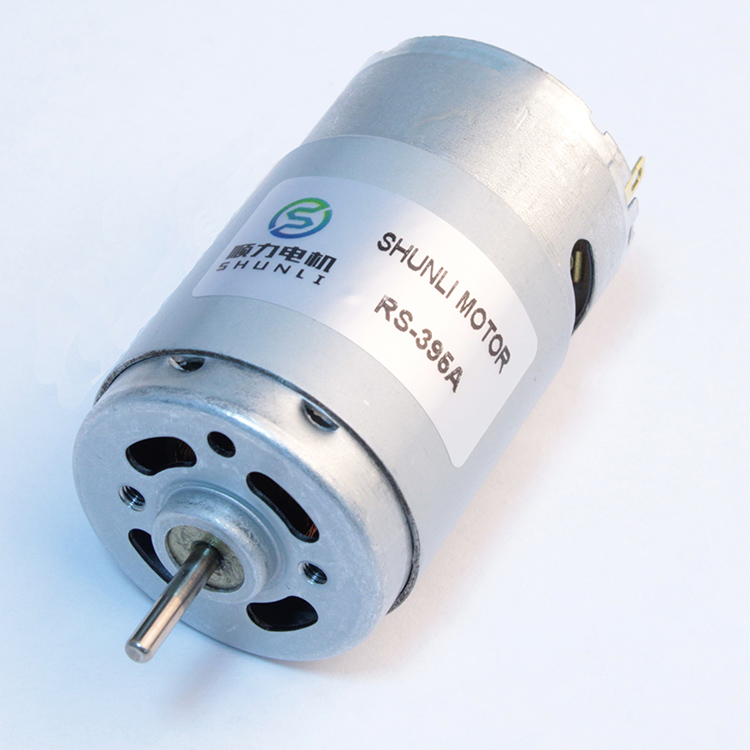

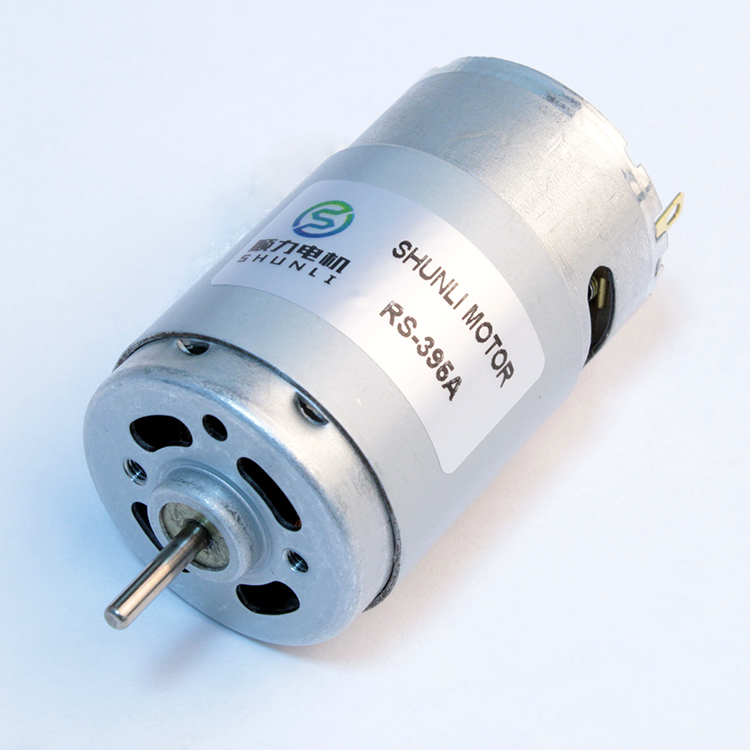

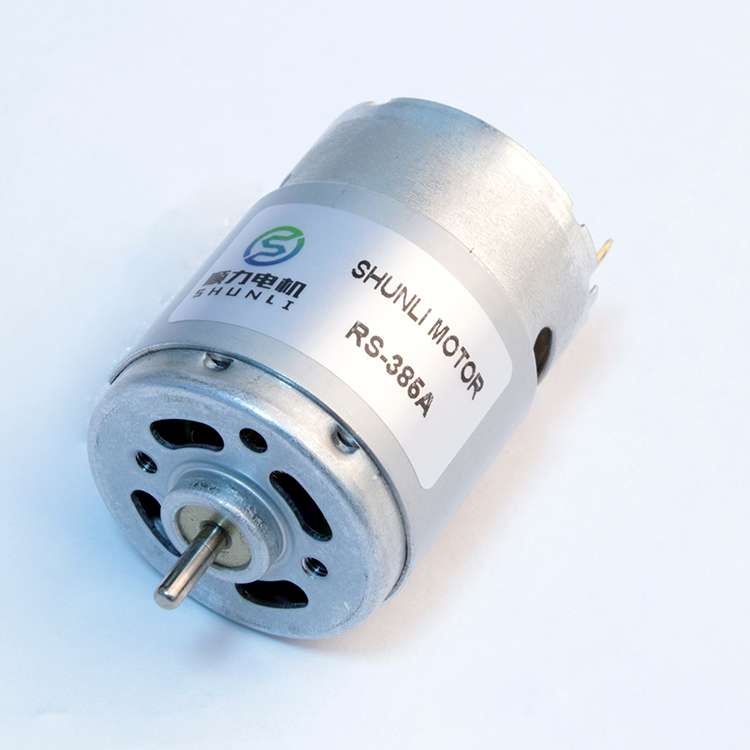

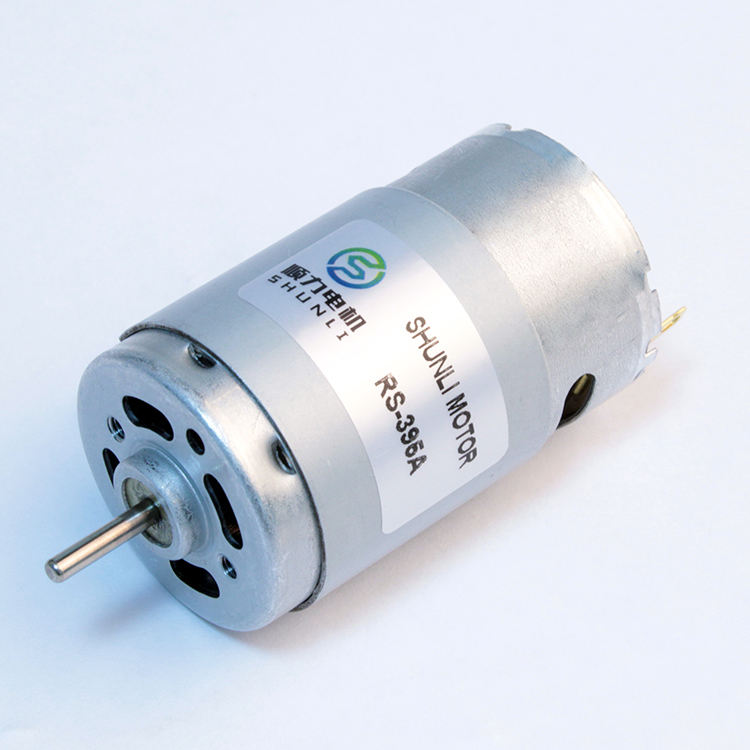

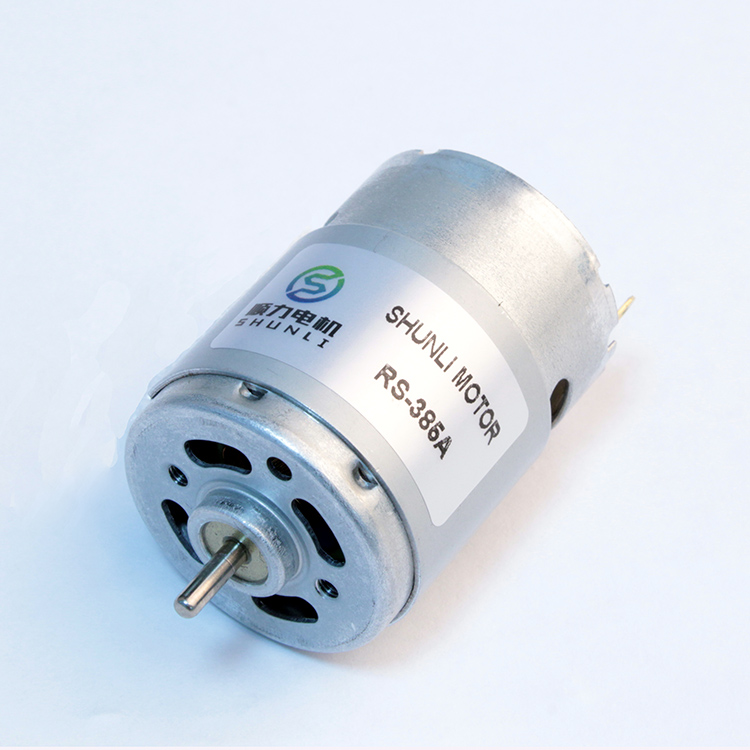

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

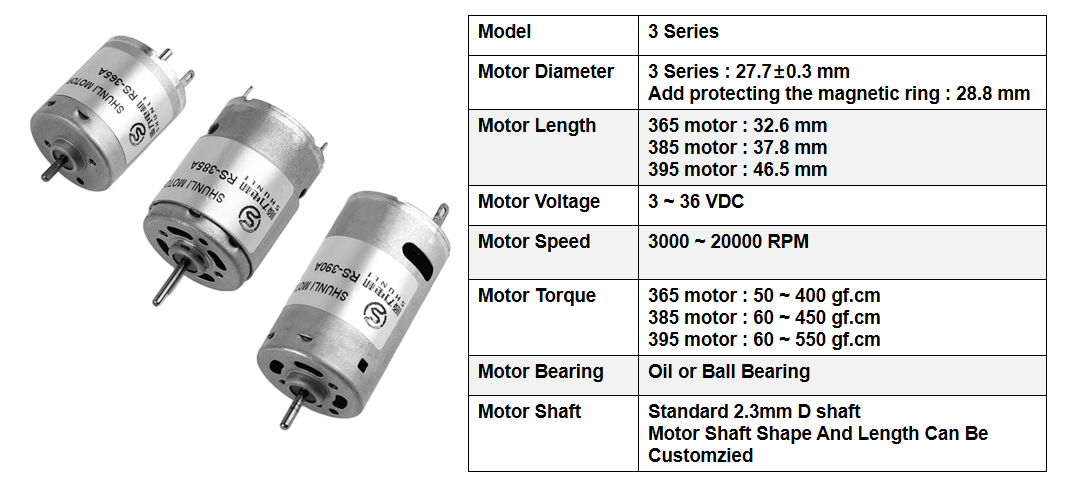

Product Details
Motor Customized Specification, Please contact us.
Reference Drawing
RS - 365 Reference Dimension
RS - 385 Reference Dimension
RS - 395 Reference Dimension
The length of shaft can be customized.
Reference Datasheet
| PMDC MOTOR Technical Data |
| Model |
Rated Voltage (V) |
No-Load |
Rated |
Stall |
| Operating Range |
Nominal |
Speed |
Current |
Speed |
Current |
Torque |
Power |
Current |
Torque |
| RPM |
A |
RPM |
A |
mN.m / gf.cm |
W |
A |
mN.m / gf.cm |
| RS-390SH |
20156R |
6.0~12.0 |
12VDC |
5000 |
0.08 |
4243 |
0.33 |
6.07 / 61.9 |
2.72 |
2.22 |
42.2 / 430 |
| 2975 |
6.0~12.0 |
12VDC |
12000 |
0.29 |
10165 |
0.33 |
5.75 / 58.6 |
1.31 |
8.9 |
80.4 / 820 |
| RS-395SH |
15130 |
6.0~12.0 |
12VDC |
3650 |
0.66 |
2949 |
0.25 |
5.83 / 59.5 |
1.8 |
1.06 |
30.4 / 310 |
| 15100R |
6.0~24.0 |
24VDC |
10300 |
0.07 |
8893 |
0.38 |
7.09 / 72.3 |
6.68 |
2.66 |
54.9 / 560 |
Recommend Products
What is the typical voltage range for the RS-380 and RS-385 DC motors?
The operating voltage range for these micro DC motors is generally between 12V and 24V. They are highly efficient and provide stable performance across this range depending on the specific model specifications.
Can the motor shaft length and specifications be customized?
Yes. The length of the shaft, voltage settings, no-load speed, and torque characteristics can all be customized. Please contact us with your specific engineering requirements.
What are the primary applications of these micro DC motors?
These motors are widely used in high-speed, large-torque applications. Typical uses include electric drills, garden power tools, dynamic toy models, and various small home appliances.
How fast can these motors rotate under no-load conditions?
Depending on the specific configuration and applied voltage, these high-speed motors can reach speeds up to 13,000 RPM or more under no-load conditions. Detailed ratings are outlined in our reference datasheet.
Do these PMDC motors offer high torque capabilities?
Yes, these permanent magnet DC (PMDC) motors are designed engineered to deliver large stall torque and high operating power, making them ideal for heavy-load hand tools and dynamic applications.
