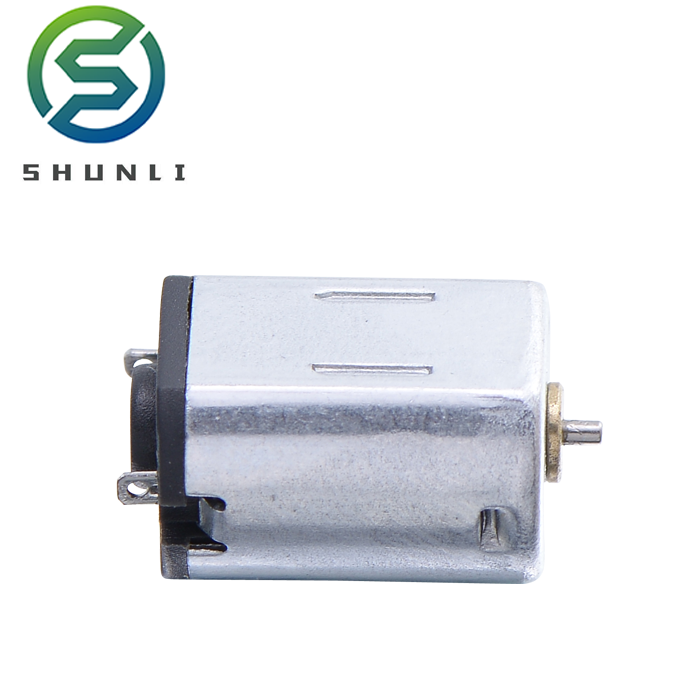

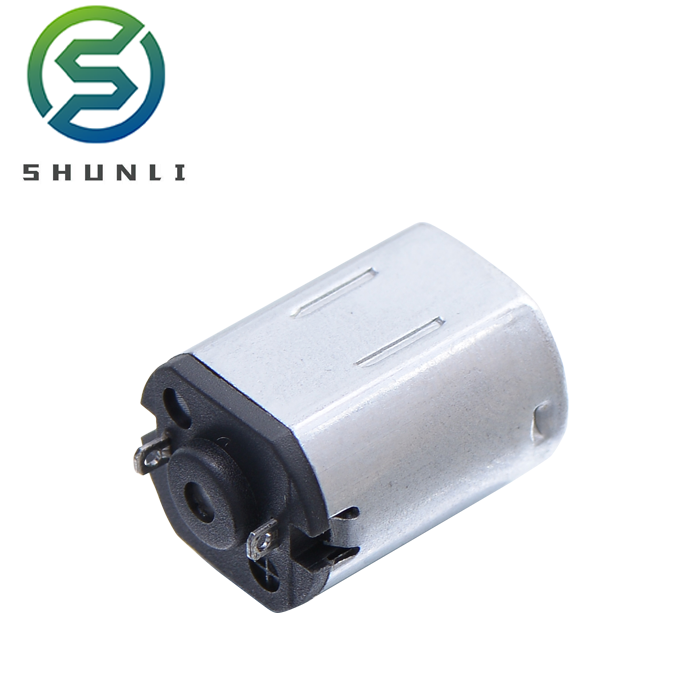

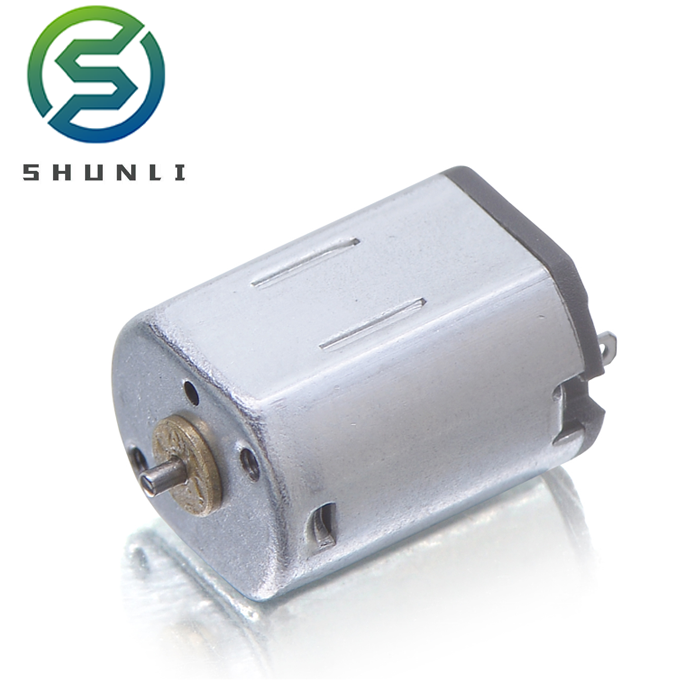

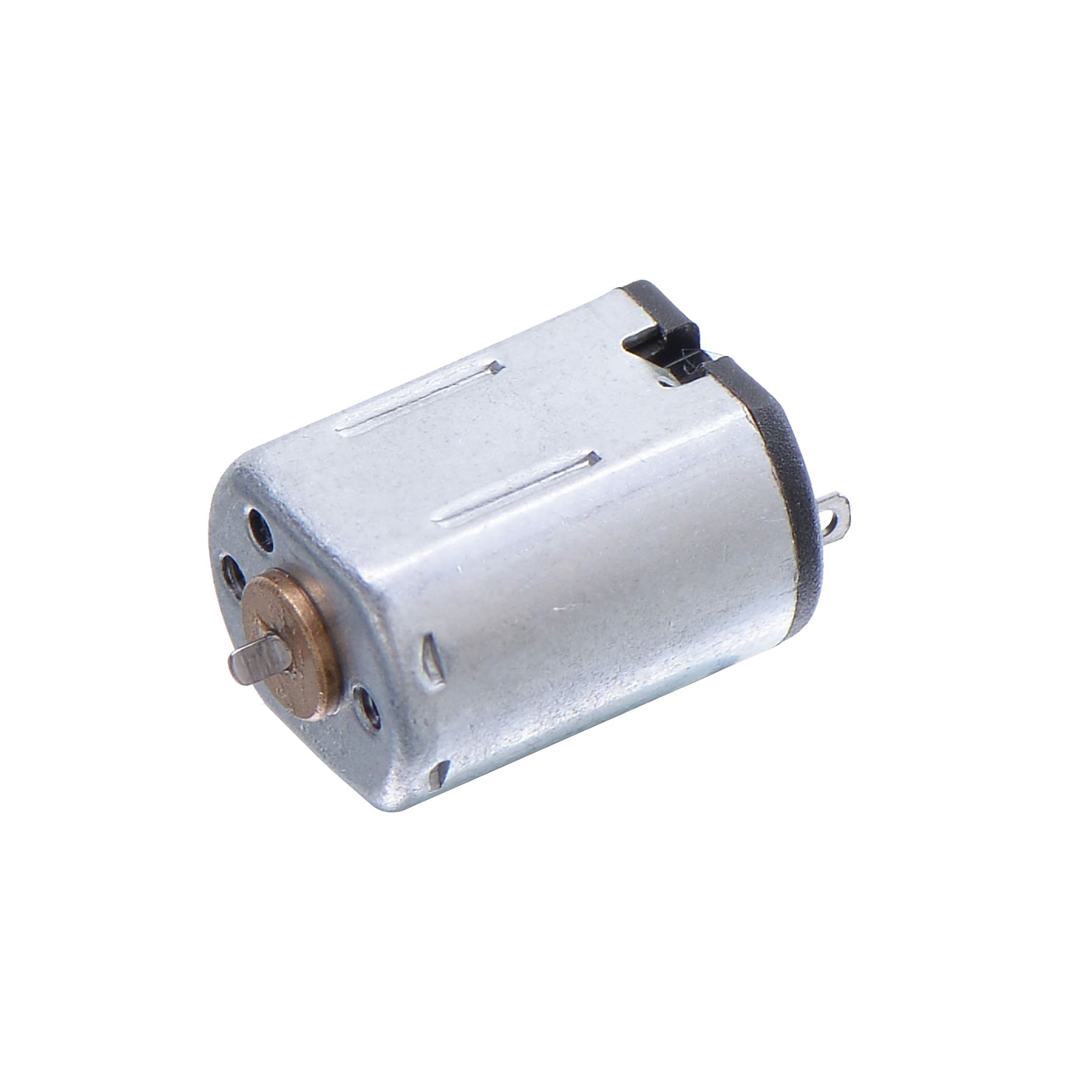

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

1 / 4

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Send Inquiry

Product Description

Special Promotion

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor Details

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

Customized 1.5v 3v 4.5v SFF-N20VA Dimensions

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	mA	RPM	mA	mN.m / gf.cm	W	mA	mN.m / gf.cm
FF-N20VA	05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3/3	0.37	210	1.2/12
FF-N20VA	08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26/2.6	0.31	470	1.3/13
FF-N20TA	2818	0.8~1.5	12 VDC	34000	70	31000	1140	0.2/2	0.64	6000	1.6/16

Applications

Certifications

Why Choose Us

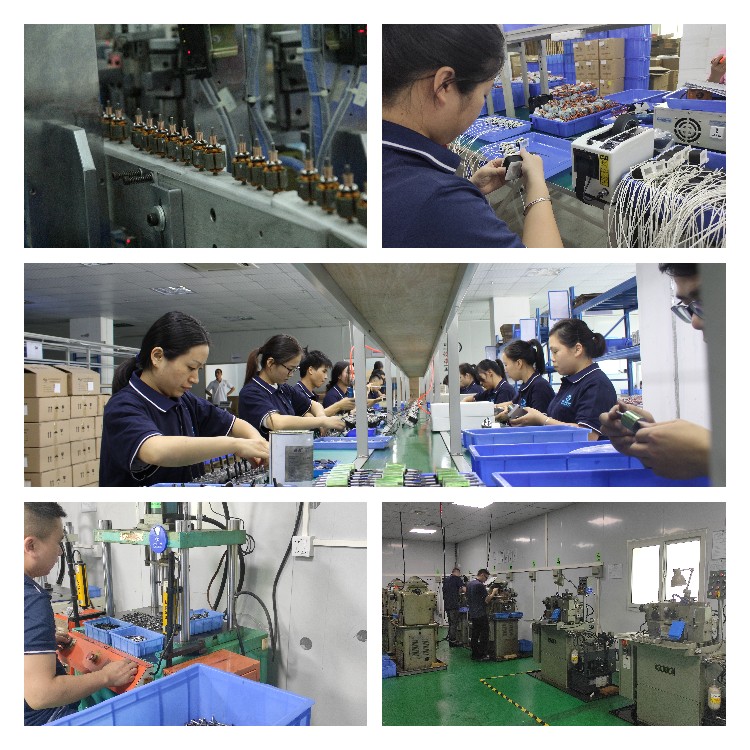

1. Advanced Production Facility

We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management system ensure a reliable production process.

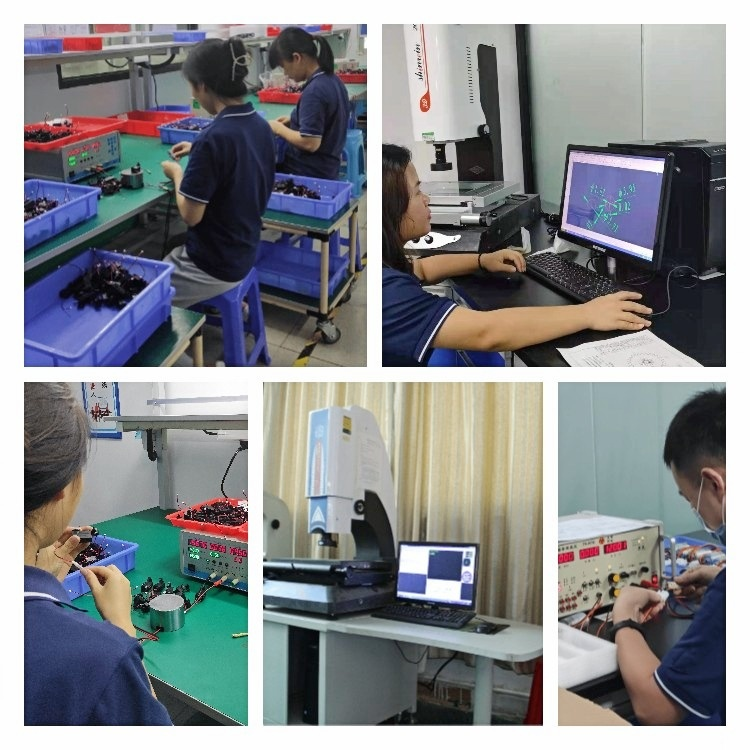

2. Strict Quality Control

In order to guarantee the highest quality, every step of production—from incoming raw materials to final shipment—is carefully checked. Quality is the absolute foundation of our development.

Our Services

High Credibility
We are a verified gold seller in possession of high credibility in the motor manufacturing industry.

100% On-Time Delivery
Our efficient production scheduling guarantees that your products will arrive in a timely manner.

Fast Prototyping
Standard samples are ready within 2 weeks, and fully customized samples are produced within 3 weeks.

Rapid Response Support
All messages and technical inquiries will be answered by our experts within 2 hours.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of design and manufacturing experience.

What is the payment term for new customers?

We support online trade assurance orders allowing payment via Mastercard, Visa, etc. Traditional payment methods such as PayPal and T/T are also fully supported.

If I cannot find a suitable motor on your list, can you customize it for me?

Yes. We offer customization options based on your specific requirements, including changes in voltage, speed, torque, shaft dimensions, and lead wire specs.

Do you have certificates for the micro motors?

Yes, our products comply with CE, FCC, ISO, and RoHS standards. If your target market requires specific certificates, we can assist in applying for them.

How do you manage Quality Control?

We have dedicated QA inspectors monitoring each stage of the production line. Fully assembled units undergo tests on professional testing equipment (Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers).

What information is needed to get a fast customization quote?

Please provide your requested voltage, rated speed, rated torque, installation space dimensions, and the operating environment of your application for our engineers to evaluate.
