TorqFlex Motor
1 / 5
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ratio | 4K / 4.75K | 16K / 19K / 22.6K | 64K / 74K / 90K / 107K | 256K / 304K / 361K / 429K / 509K | 1024K / 1216K / 1444K / 1715K / 2036K / 2418K |

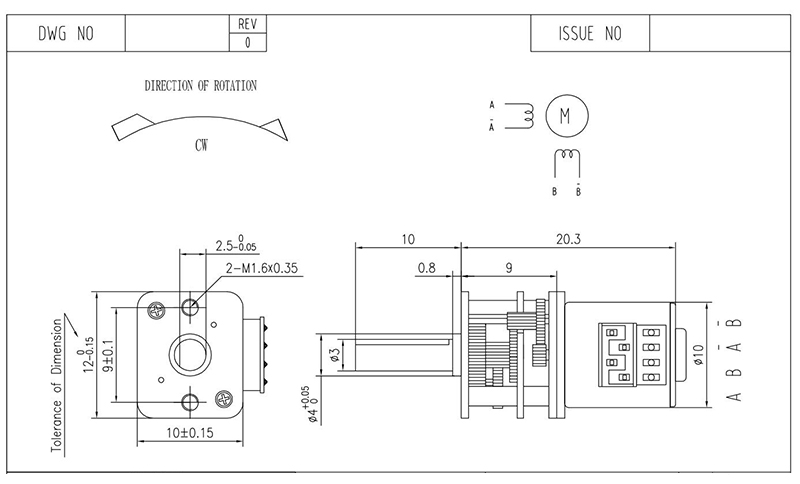

| Gearbox Length “L”(mm) | 13.3 | 16.8 | 20.3 | 23.8 | 27.3 |
| Max. Rated Torque | 1.0 Kgf.cm | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm |
| Max. Gear Breaked Torque | 3.5 Kgf.cm | 6.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm |
| Gearbox Efficiency | 80%~90% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |

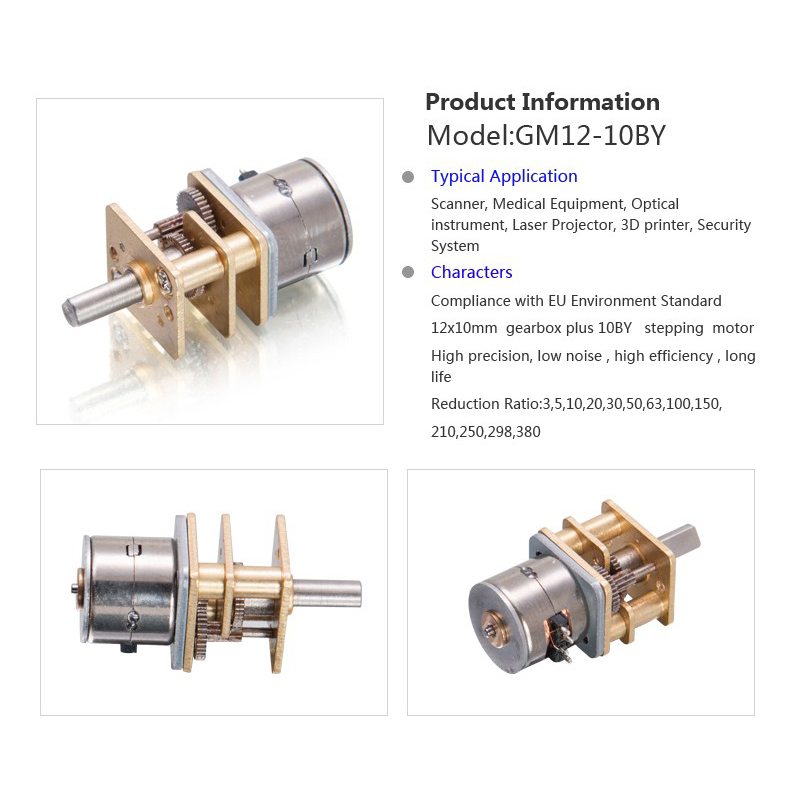

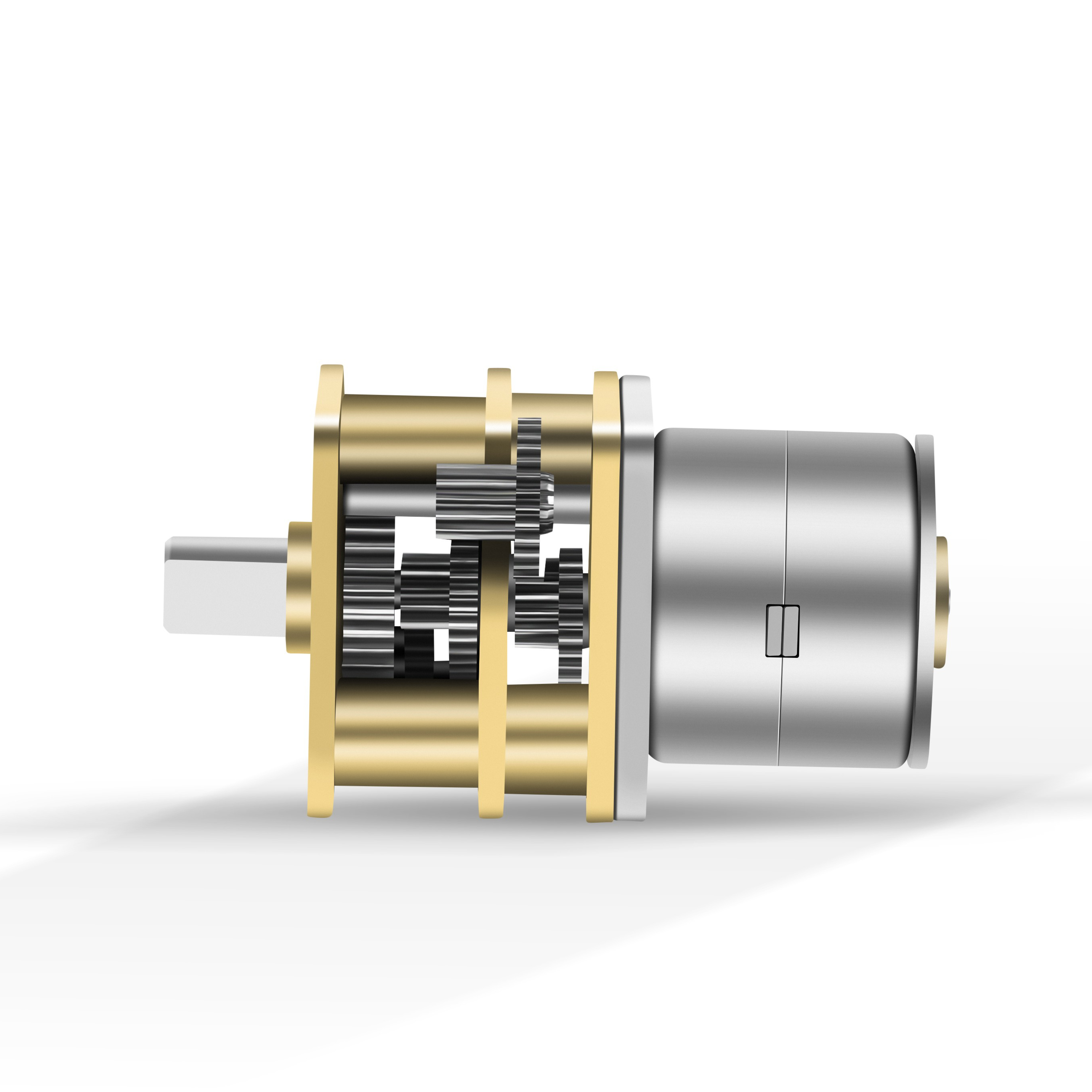

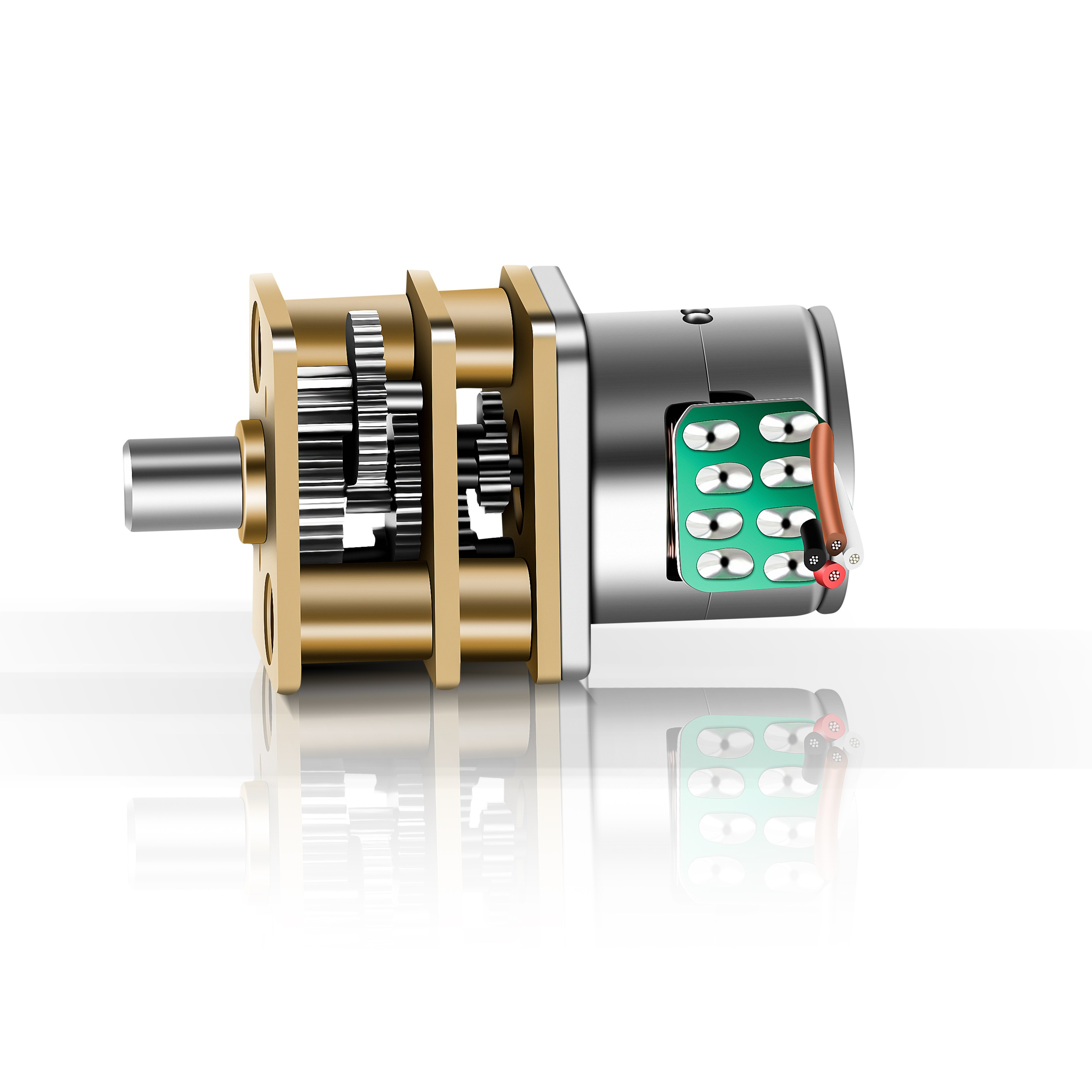

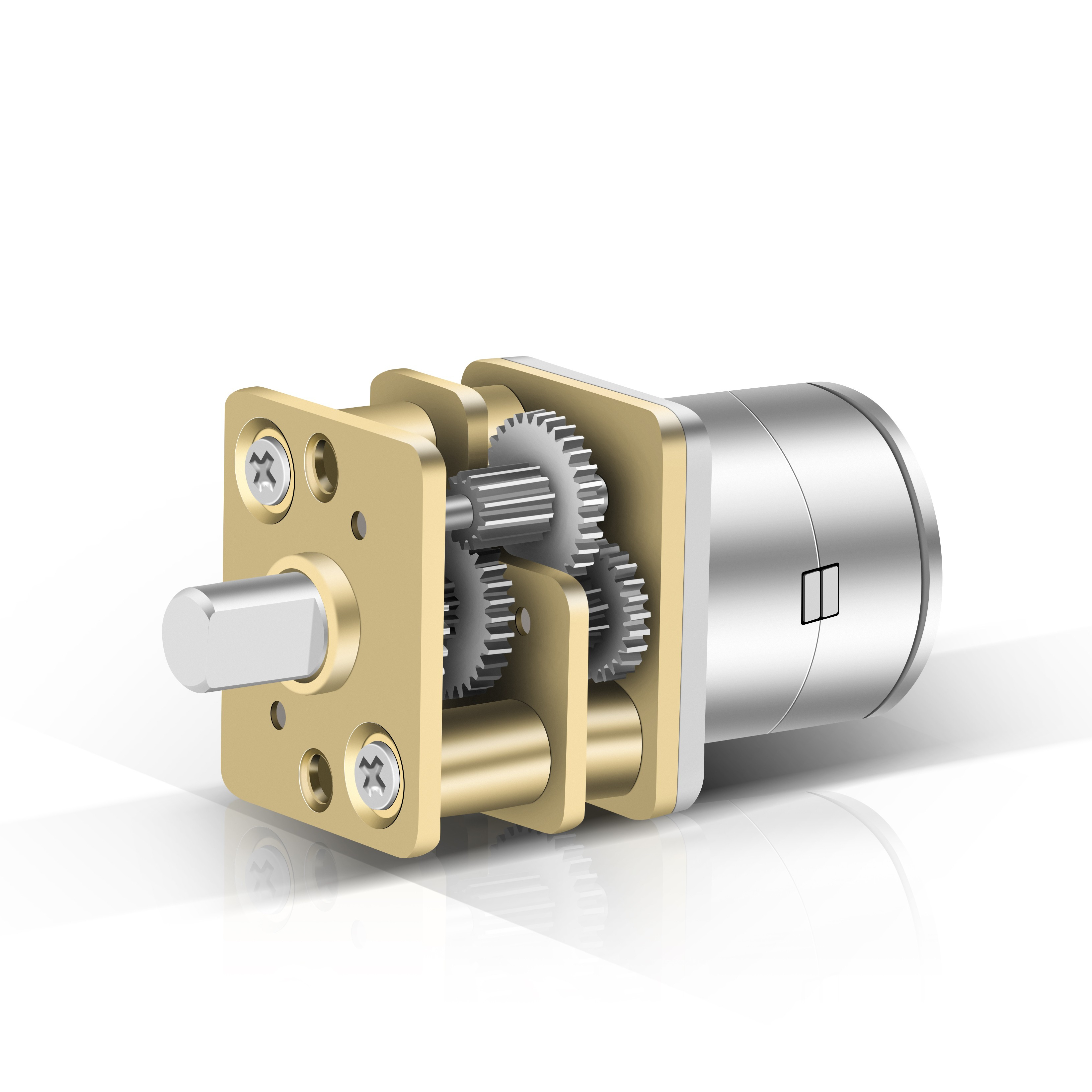

| Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment | |||||
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (N.m / Kgf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GMP22M130-64K | 1 : 64 | 6 VDC | 138 | ≤ 160 | 110 | ≤ 450 | 0.095 / 0.95 | ≤ 1700 | 0.42 / 4.2 |
| GMP22M180-256K | 1 : 256 | 5 VDC | 38 | ≤ 180 | 30 | ≤ 1050 | 0.32 / 3.2 | ≤ 3900 | 1.25 / 12.5 |
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
We can draw up an Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Yes, we can customize a suitable motor according to our customer's technical requirements.
Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can apply for them for you.
We have professional quality inspectors on every production line process. After finishing the assembly of the motor, we use specialised testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
Please provide details such as rated voltage, no-load/rated speed, torque requirements, output shaft dimensions, and your specific application conditions to help us recommend or design the best option.
