6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

📋 Product Description

6v 12v 24v micro motor electric car motor micro dc motor

Product Details

⚙️ Motor Customized Specification Available

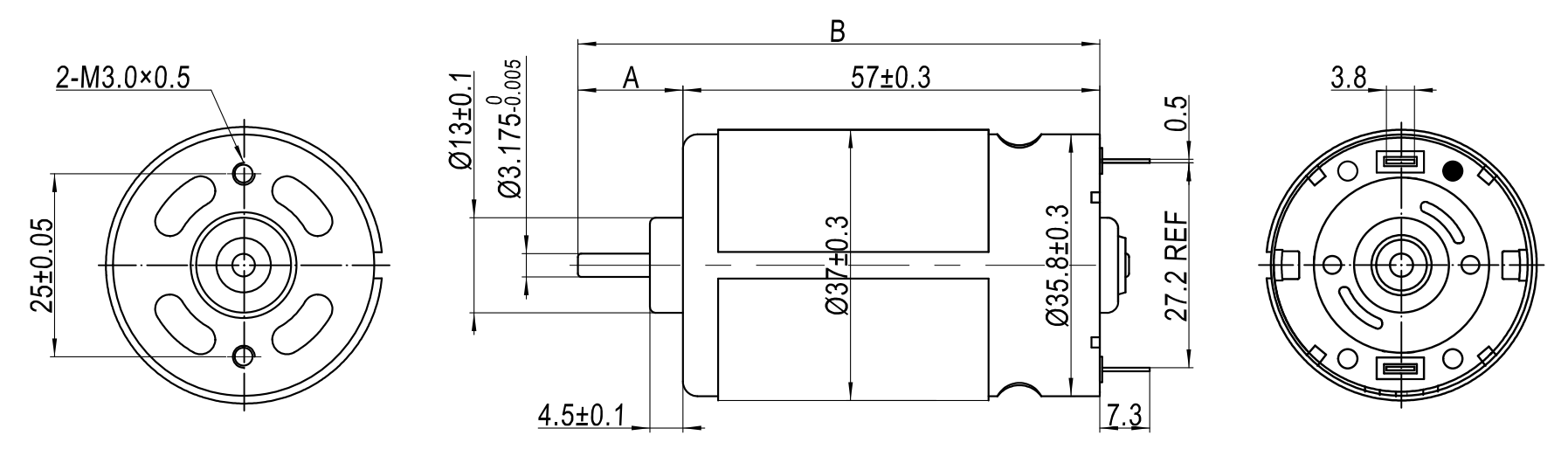

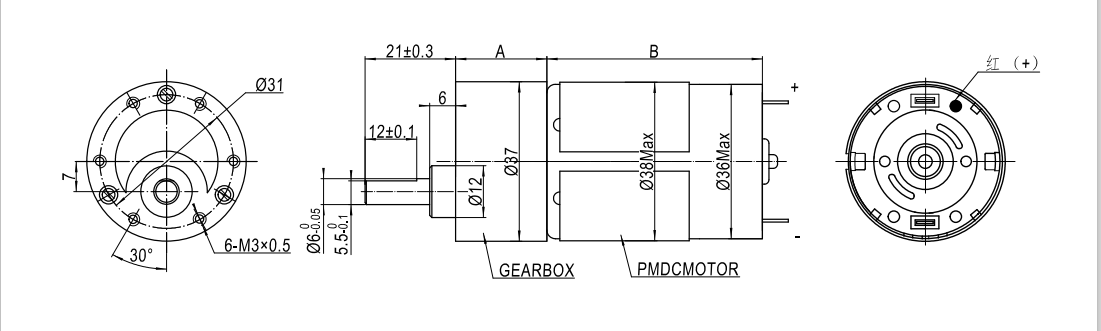

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

📐 The length of shaft can be customized.

Reference Datasheet

Model		Rated Voltage(V)		No-Load		Rated				Stall
PMDC MOTOR Technical Data
Model		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		V	V	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

⭐ Recommend Product

❓ Frequently Asked Questions

Q What voltage configurations are available for these micro DC motors?

These micro DC motors are available in standard 6V, 12V, and 24V configurations, offering adaptability for various automotive and electronic application designs.

Q Can the shaft dimensions and motor specifications be customized?

Yes, key features such as the shaft length, operating voltage range, speed, and torque values can be fully customized to meet your exact mechanical specifications.

Q What are the typical applications of the RS-550 and RS-555 micro motors?

These PMDC motors are highly versatile and widely used in electric car parts, automotive actuators, small home appliances, tools, and office automation systems.

Q What range of stall torque can these micro DC motors handle?

Depending on the model selection and voltage configuration, the stall torque ranges from 124.5 mN.m up to 281.4 mN.m as detailed in our technical datasheet.

Q How do I determine the correct motor model between RS-545, RS-555, and RS-575?

You can review the reference drawings and the technical parameters datasheet to match the size dimensions (diameter, length) and power characteristics (no-load speed, rated torque) with your requirements.
