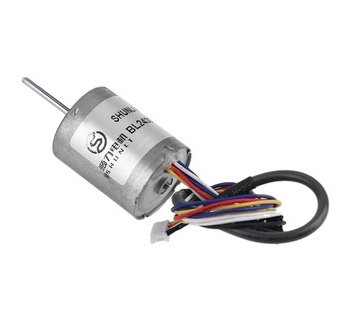

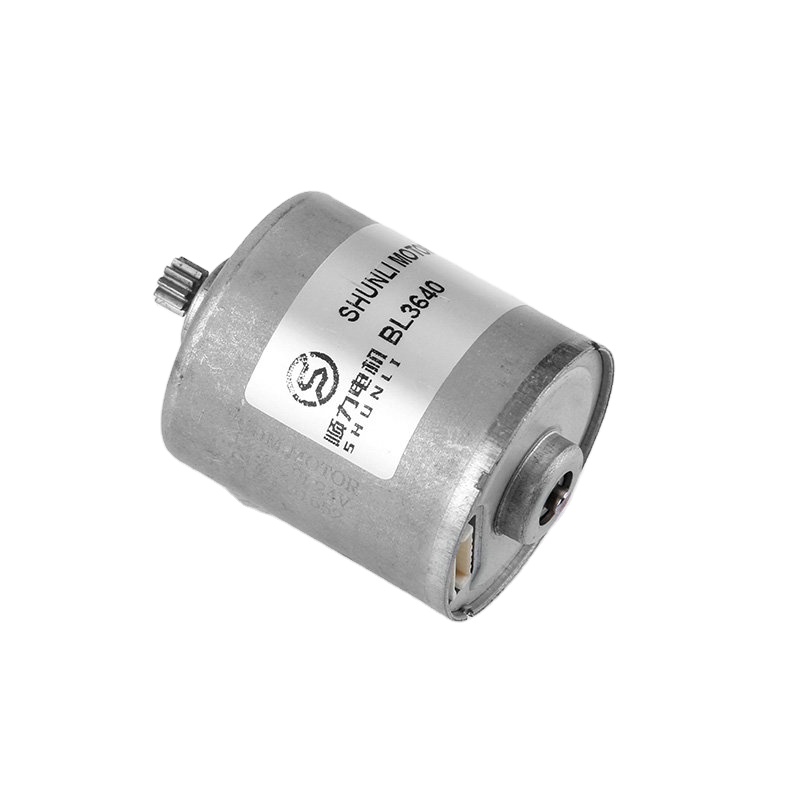

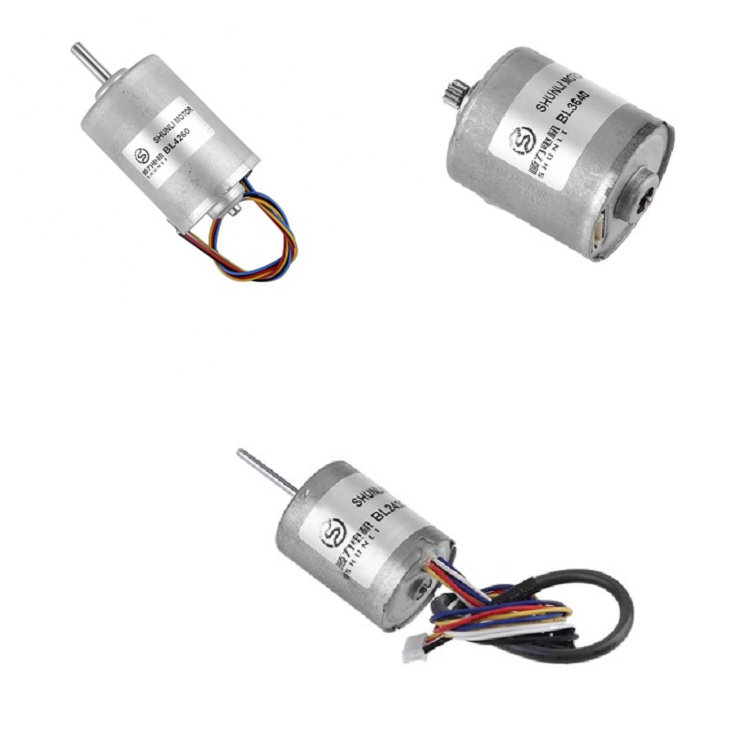

12V 18V 24V high speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC motor for fan
💡
Motor Customized Specification, Please Contact Us.
BLDC MOTOR Terminations
| PIN NO. |
PIN Arrangement |
| 1 |
VCC |
| 2 |
FG |
| 3 |
CW/CCW |
| 4 |
GND |
| 5 |
PWM |
Frequently Asked Questions (FAQ)
What operating voltages does this brushless DC motor support?
This high-speed brushless DC motor is designed to operate at 12V, 18V, and 24V configurations, making it versatile for different power setups.
What are the speed options for this fan motor?
Depending on your requirements and voltage, the motor can achieve high-speed performance ratings of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM.
What torque does this 36mm BLDC motor deliver?
This motor provides stable torque outputs of 100 G.CM and 150 G.CM, which is optimized for high-speed cooling fans and related applications.
How is the pin arrangement defined for the motor terminations?
The motor has a 5-pin termination layout: PIN 1 is VCC, PIN 2 is FG, PIN 3 is CW/CCW (direction control), PIN 4 is GND (ground), and PIN 5 is PWM (speed control).
Can I customize the specifications of this brushless motor?
Yes, we support customized motor specifications. You can get in touch with us to discuss specific technical parameters tailored to your application.
