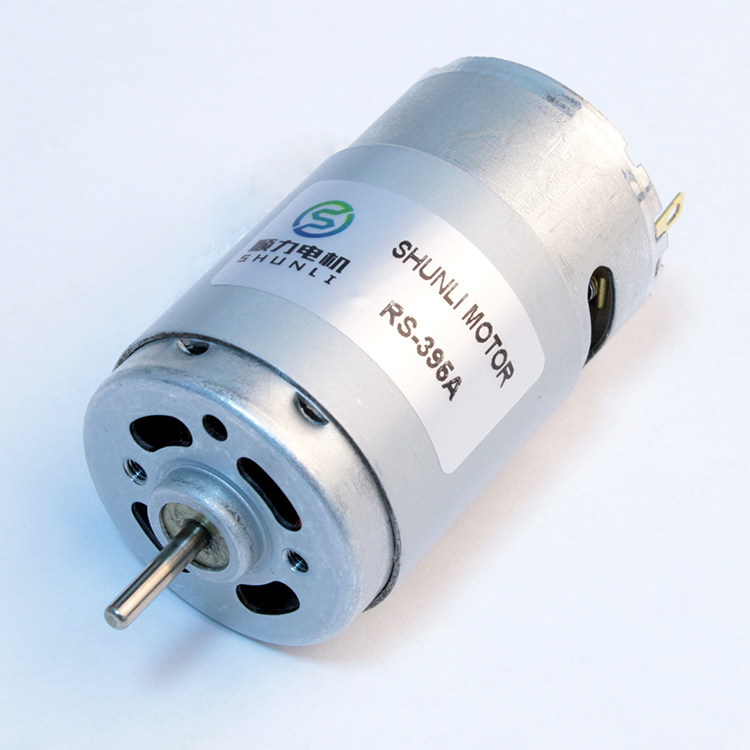

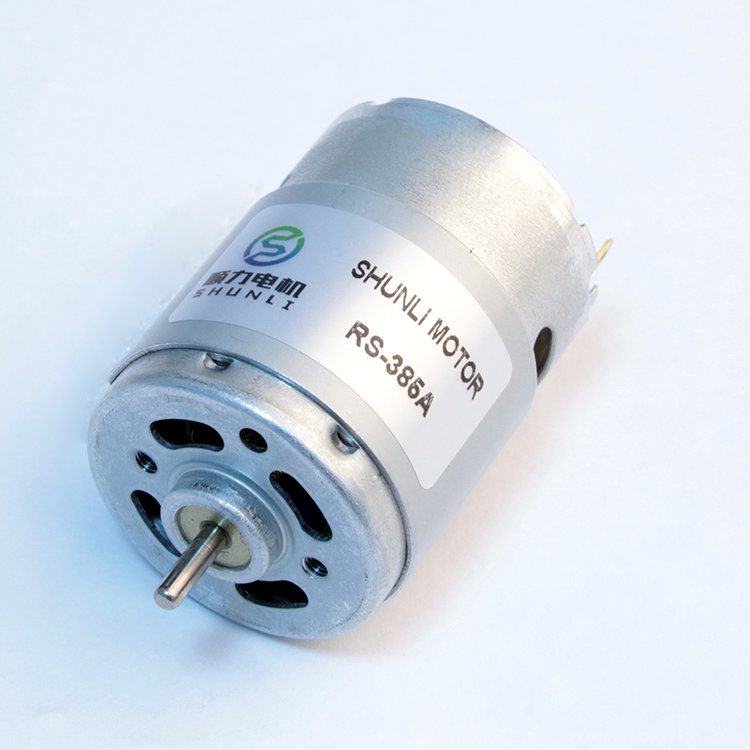

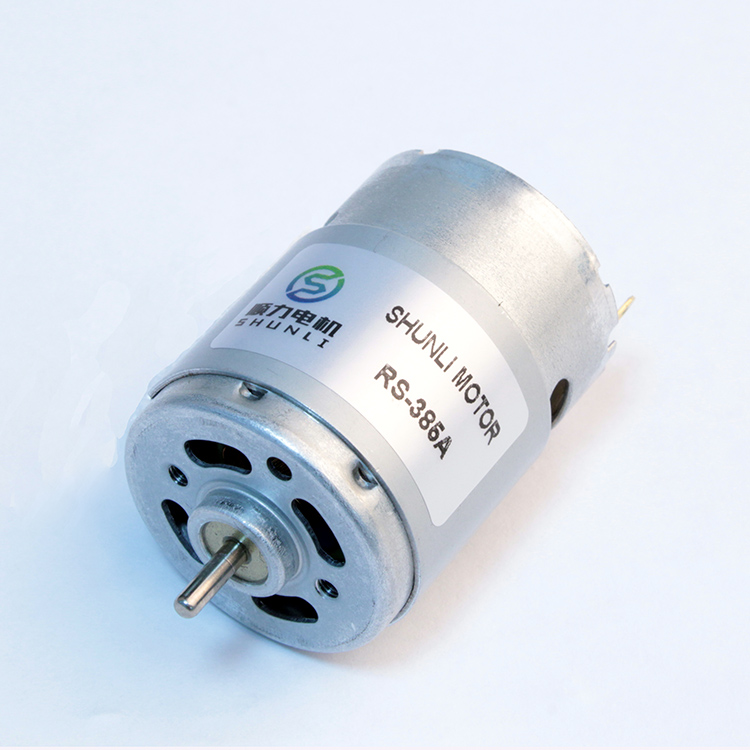

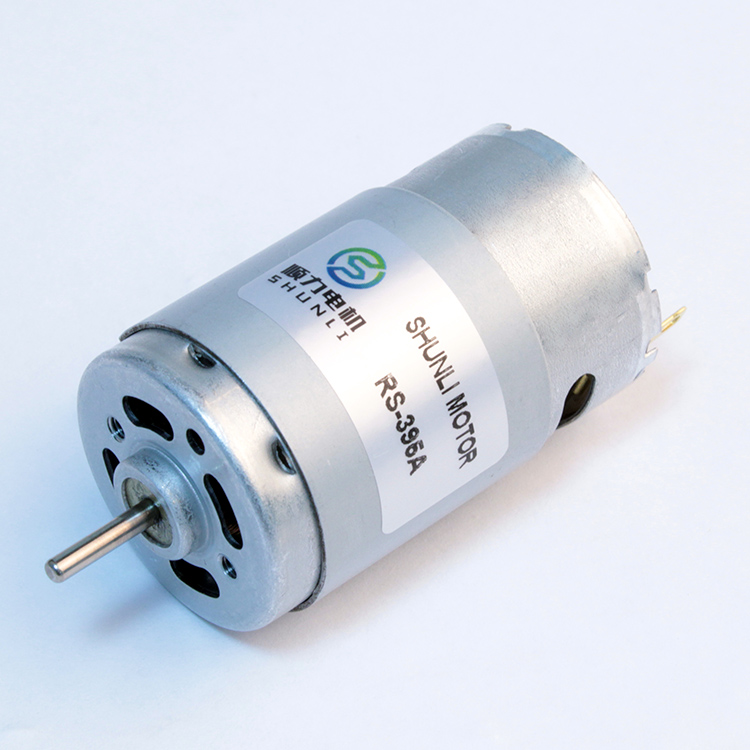

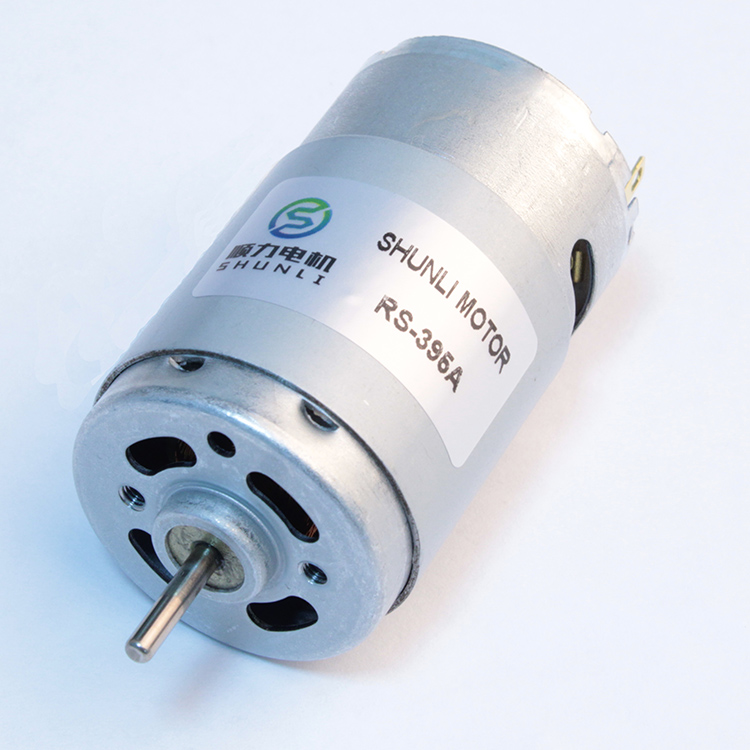

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

1 / 5

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Send Inquiry

Product Description

390 DC Motor for Machine Fan 12V 6000rpm Motor

Product Details

390 Dc Motor for Machine Fan Product Specifications

Motor Customized Specification, Please contact me.

Reference Drawing

RS - 365

RS - 385

RS - 395

The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Give us a chance to cooperate with you!

Frequently Asked Questions (FAQ)

What are the main applications of the 390 DC Motor?

The 390 DC motor is widely used in machine fans, personal cooling fans, smart household appliances, and other precise automated mechanisms requiring stable rotation.

Can the motor specifications and shaft length be customized?

Yes, the physical dimensions, shaft lengths, and electrical specifications (such as voltage, speed, and torque) can be customized to match your project requirements.

What are the key differences between the RS-390 and RS-395 models?

The RS-395 model supports a wider operating voltage range (up to 24VDC) compared to the RS-390, which is optimized for 6V to 12V configurations. Detailed torque and RPM levels also differ depending on the selected model code.

What is the typical speed range for these motors?

No-load speeds range from approximately 3,650 RPM up to 12,000 RPM, depending heavily on the winding configurations and nominal input voltage (12VDC or 24VDC).

How is the thermal heat dissipation managed in these fan motors?

The PMDC motor design incorporates high-efficiency internal rotors and venting slots where appropriate to allow efficient heat dissipation under standard operating loads.
