Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

1 / 5

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Send Inquiry

Product Description

Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Product Description

Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor

Product Details

Motor Customized Specification, Please contact us.

Reference Drawing

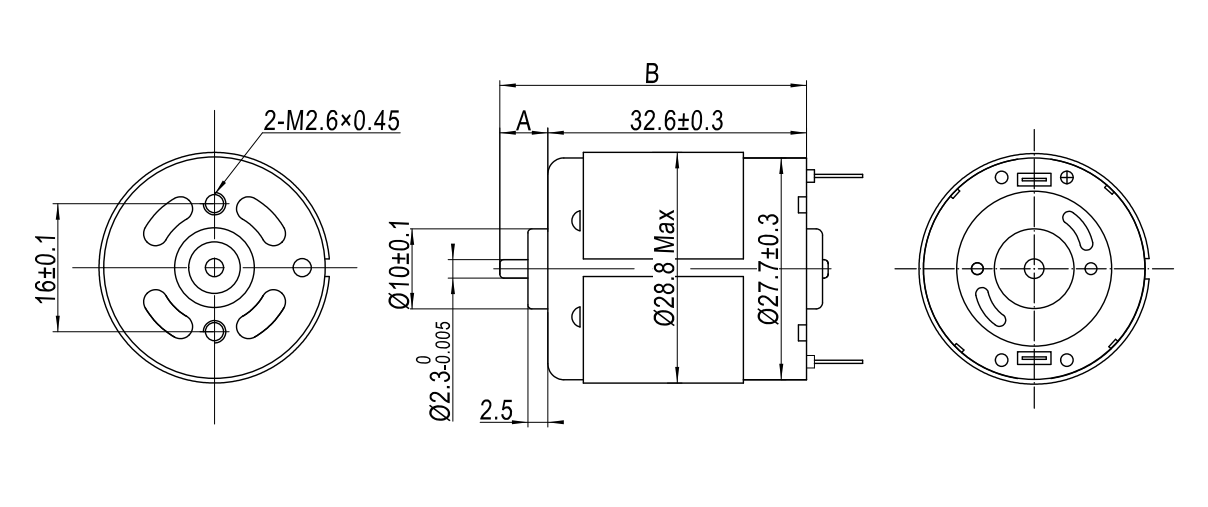

RS - 365

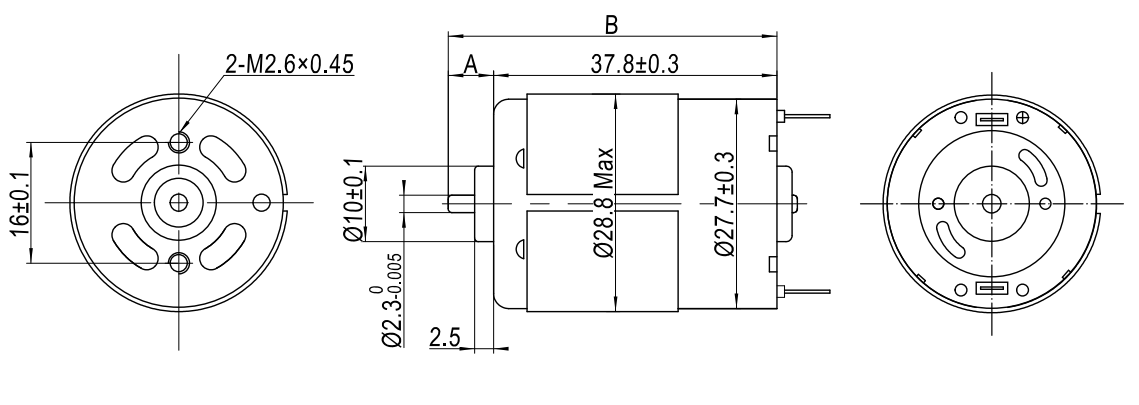

RS - 385

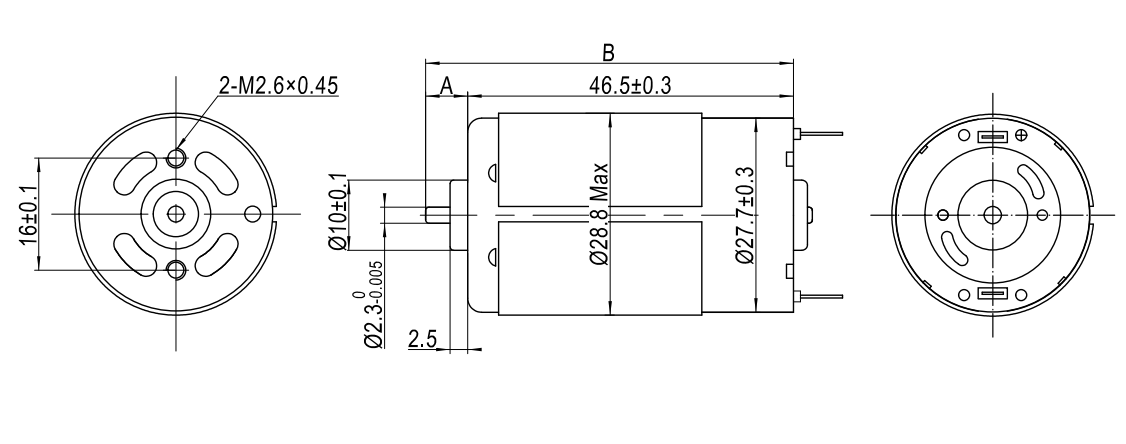

RS - 395

The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Date
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Recommend Product

Frequently Asked Questions

Can the shaft length of the 390PH DC motor be customized?

Yes, the shaft length and overall dimensions can be customized according to your specific product designs and requirements.

What are the primary applications for the RS-390 and RS-395 motors?

These micro PMDC motors are widely applied in household appliances, specifically professional hair dryers, micro vacuum cleaners, personal care devices, and smart electronic tools.

What is the customizable voltage range for these micro motors?

The rated operating voltage typically ranges from 6.0V to 24.0V DC. Standard nominal voltages are 12VDC and 24VDC, but they can be customized to match your electrical system.

How can I select the right motor model between RS-365, RS-385, and RS-395?

Selection depends on your required speed (RPM), operating torque, and power output. Please refer to our Reference Datasheet or contact our engineering support with your target performance parameters.

Do you support brush and brushless motor configurations?

Yes, we specialize in custom professional manufacturing of both brushed and brushless DC motors designed to optimize performance, life cycles, and noise levels.
