| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |

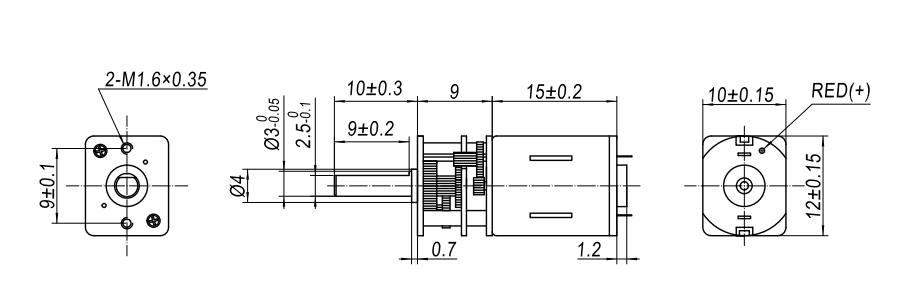

| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |

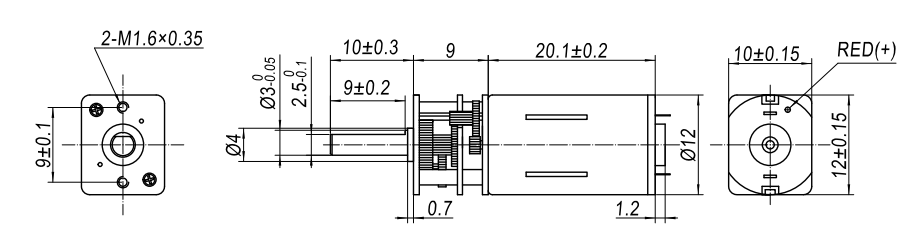

| GM12AMN30-10K | 1: 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|
| Gearbox Length “L” (mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/50K/63K/100K | 110K/150K/210K/250K/298K/380K | 372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
