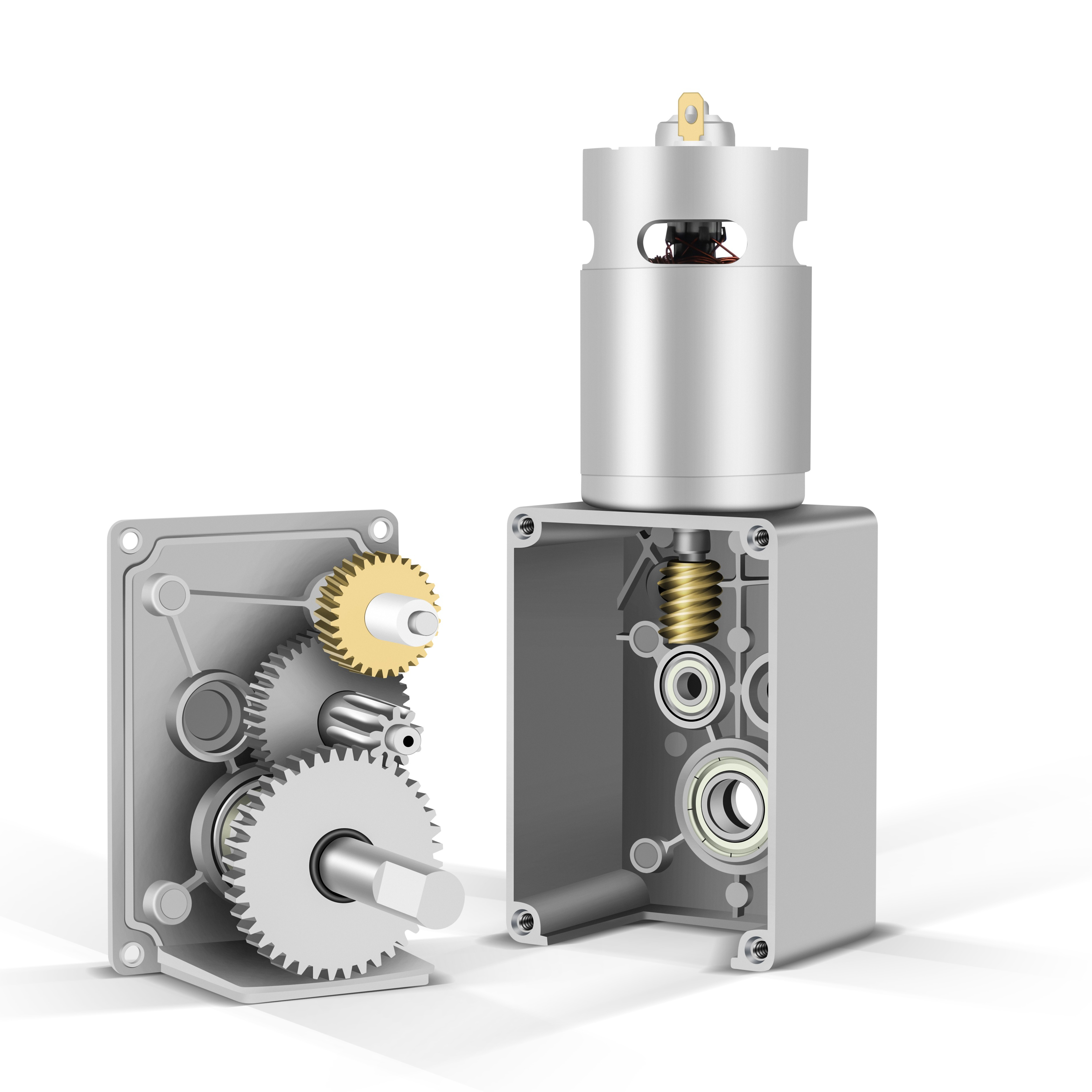

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Product Description

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Worm Gear Motor Detail 1
Worm Gear Motor Detail 2
Worm Gear Motor Detail 3

Product Description

Product Details

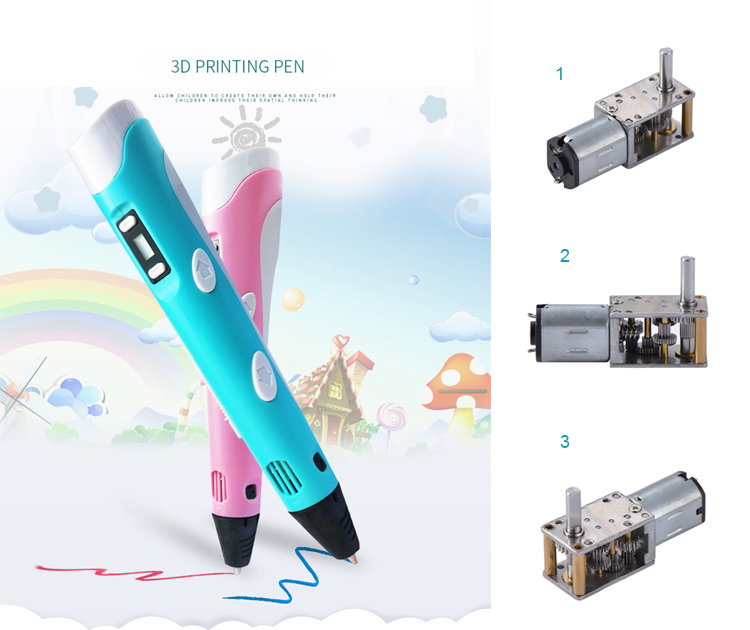

Factory Worm Gear Motor Features

Specification

Gearbox Technical Data
Ratio Max. Rated Torque Max. Gear Breaked Torque Gearbox Efficiency
41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K 300~800 gf.cm 1000~3000 gf.cm 12%~35%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
GM1220EMN20-95K 1 : 95 4.5 VDC 145 ≤ 70 122 ≤ 200 8 / 80 ≤ 700 75 / 750
GM1220EMN30-1007K 1 : 1007 12 VDC 25 ≤ 90 22 ≤ 230 120 / 1200 ≤ 400 420 / 4200

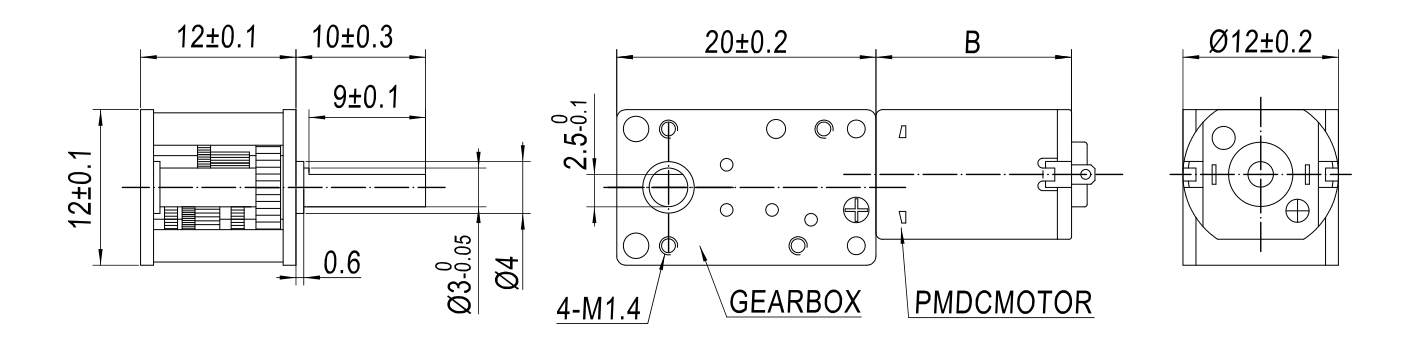

Gearmotor Dimensions
PMDC MOTOR Technical Data
PMDC MOTOR Model Length "B" (mm) Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
SL-N20 04514000 15 4.5 VDC 14000 ≤ 40 12000 ≤ 130 0.25 / 2.5 ≤ 650 1.5 / 15
SL-N30 1225400 20 12 VDC 25400 ≤ 50 22600 ≤ 170 0.5 / 5 ≤ 380 4.2 / 42

Application

Motor Applications Map

Customer Evaluation

Customer Feedback

Certification

Certification Documents Part 1
Certification Documents Part 2

Our Company

Company Overview Image 1
Company Overview Image 2

Established in 2005, this high-tech enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. Products are exported to more than 50 countries and regions at home and abroad.

Factory Assembly Line

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
We can draw up a Trade Assurance Order online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal or TT, etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific technical requirements.
Q4: Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them as needed.
Q5: How is your Quality Control?

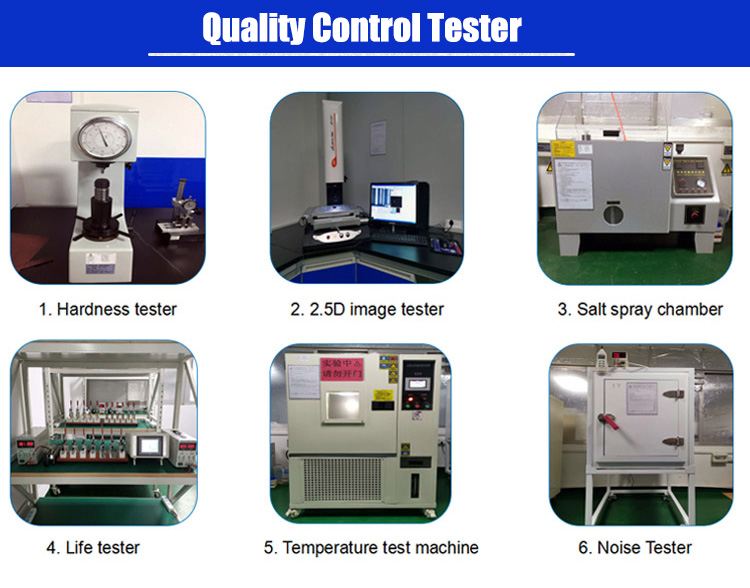

We have professional inspection staff on every production line process. After completing the assembly, we use testing equipment to inspect the motor, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers, etc.
Q6: Do you accept sample orders before bulk production?
Yes, we support sample testing. Customers can verify the motor's performance and quality in their application before placing large volume orders.
